4000-Watt Mazak 3D Fabri Gear 150 Tube Laser

Manufactured in 2008

Machine Number 1225

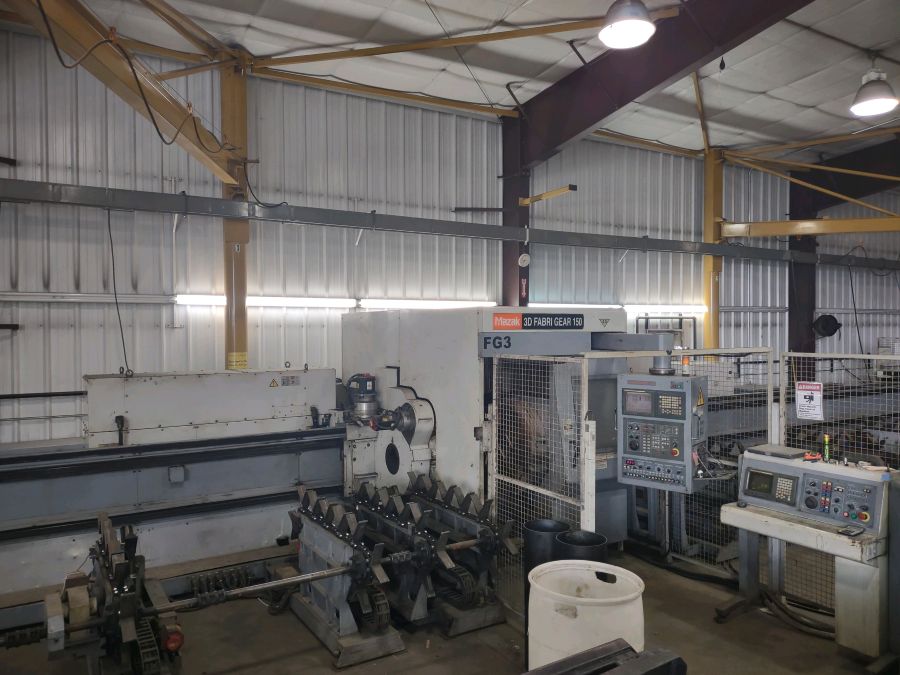

1225-Mazak-3D-Fabrigear-150-Full-Machine

Image 1 of 15

Mazak Tube Laser

This is a 4000-Watt Mazak Fabri Gear 150 (8 meter) 3-D Tube Laser with maximum machining size of 6″ diameter round or square material.

Specifications

Model: Fabri Gear 150 3-D Tube Laser
Type: Hybrid Type
Laser Output: 4000 Watts
Maximum Machining Size:
   Round Material: 6”
   Square Material: 6”
Material and Part Weight limit, Maximum Total: 727 lbs
Material and Part Weight limit, Max per Foot: 32 lbs
Height to Material Rotation Center: 37.41”
Axis Motion Stroke: X: 352” / U: 345” / V: 91.14” / Y: 38.78” / Z: 14.57”
Axis Motion Stoke: A: ± 360° / B: ± 135°
Rapid Traverse:
   X, U & V: approx. 3937 ipm
   Y: 1,417 ipm
   Z: 1,181 ipm
   A: 9600°/min
   B: 9600°/min
   C: Approx 20000°/min
Axis Drive System:
   AC Servo Motor: Digital Servo Drive
   X-Axis: Rack & Pinion
   Y & Z-Axis: Ball Screws
Positioning Accuracy:
   X, U, & V Axis: ± 0.0020 in./19.69 in.
   Y-Axis: ± 0.00040 in./19.69 in.
Repeatability:
   X, U, & V Axis: ± 0.0004”
   Y & Z-Axis: ± 0.0004”
Machining Head: Standard focal length 7.50” lens
Z-Axis Profiling: Non-contact Type

Material Handling Units

Quantity:
   In-Feed Loader Supports: 3
   Out-Feed Unloader Supports: 4
Transportable Length:
   Automatic Loader: 135.83” – 314.96”
   Automatic Unloader: 27.56” – 314.96”
   Manual Unload: Any Part Smaller than 27”
Number of “V” Style Loader/Unloader Locations: 5
Transportation Stroke: 39.5”
Transportation Speed: Approx. 196.9 ft/min
Drive Method: AC induction motor
Material Delivery Method: Manual Operation

Equipped With

Fanuc Control
