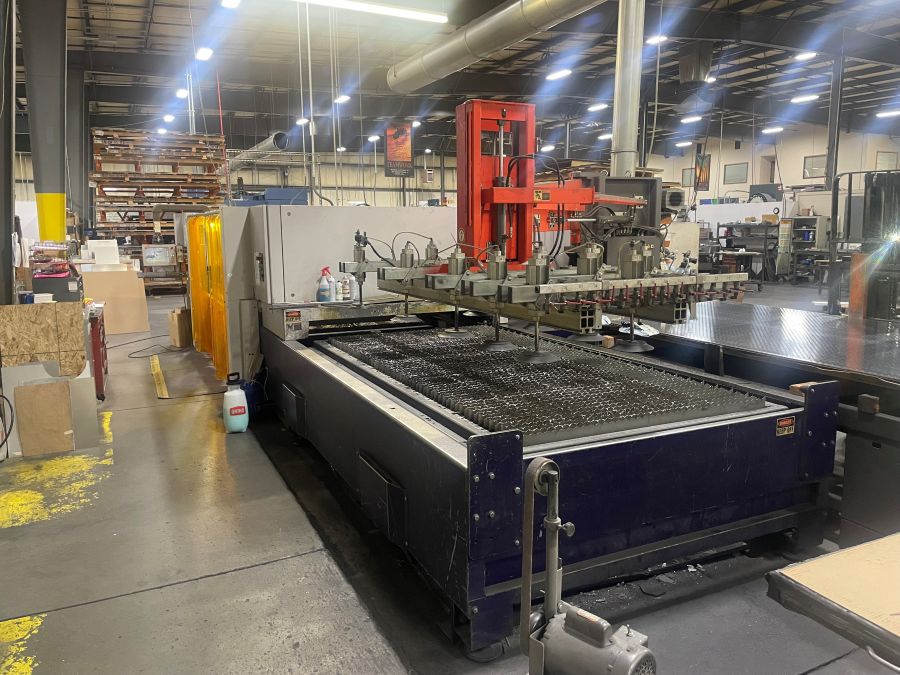

4000-Watt Bystronic ByStar 3015 Laser Cutting System
Manufactured in 2005
Request Quote
Bystronic Bystar 3015
The Bystronic Bystar 3015 is the 5′ x 10′ laser cutting system. Bystronic Bystar lasers are high speed CO2 laser systems.
Machine Specifications
Maximum sheet size: 120” x 60”
X-Travel: 120”
Y-Travel: 60”
Z-Travel: 6.70”
Maximum positioning speed axis parallel x,y: 3,150 IPM
Maximum positioning speed simultaneous: 4,449 IPM
Maximum axis acceleration: 14.76 ft/s2
Positioning accuracy: +/- 0.004
Repeatability: +/- 0.002
Edge detection precision: +/- 0.02
Maximum workpiece weight: 1,587 lbs
Machine weight: 29,263 lbs
Laser output: 4000-Watt
