4000-Watt Amada LC-3015F1NT CO2 Laser
Manufactured in 2011
Machine Number 1281
Request Quote
Amada LC-F1 NT Series
Amada engineered the LC-F1 NT to provide the optimal laser cutting system for every manufacturing requirement with the ability to produce high-quality parts efficiently and cost effectively. Th LC-F1 NT is a 3-Axis linear motor drive laser cutting system which is exceedingly fast and extraordinarily precise. This model has a working area of 5′ x 10′ and is a 4000-Watt laser.
Machine Specifications
CNC Unit: AMNC-F 32 bit
Laser Oscillator: Fanuc AF4000i-B

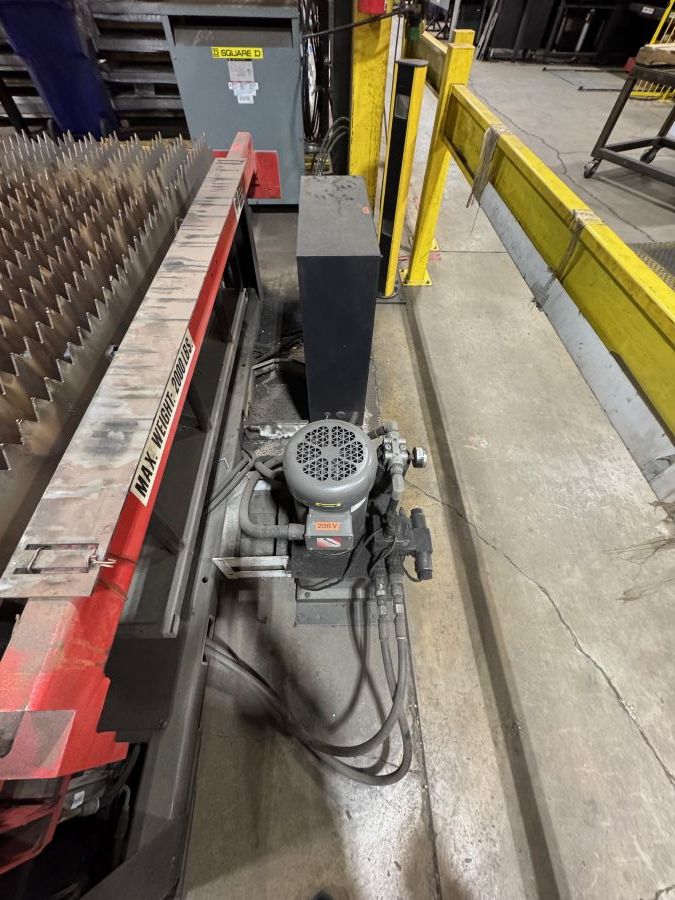

Carriage and Laser Shuttle Table Travel
Y Axis: 61″
X Axis: 129″
Maximum Work Area: 121″ x 61″ x 3.94″
Maximum Sheet Size: 120″ x 60″
Maximum Worksheet Weight: 2028 lbs.
Z-Axis Motion (laser cutting head): 3.94″
Maximum Positioning Speed (Rapid)
X Axis: 4724 IPM
Y Axis: 4724 IPM
Z Axis: 4724 IPM
Simultaneous X Axis + Y Axis: 6681 IPM
Maximum Cutting Speed: 0-2360 IPM
Accuracy: +/- 0.002″
Laser Specifications AF 4000 Oscillator (Resonator)
CW Power: 4,000 Watts
Peak Pulse Power: 5,000 Watts
Maximum Material Thickness
Carbon steel: 0.875″
Stainless steel: 0.500″ CleanCut (TM)
Aluminum: 0.375″
Equipped with
Chiller
Dust Collector
