4000-Watt Amada FOM2 RI 3015 Rotary Index and Flat Laser Cutting System

Manufactured in December 2013

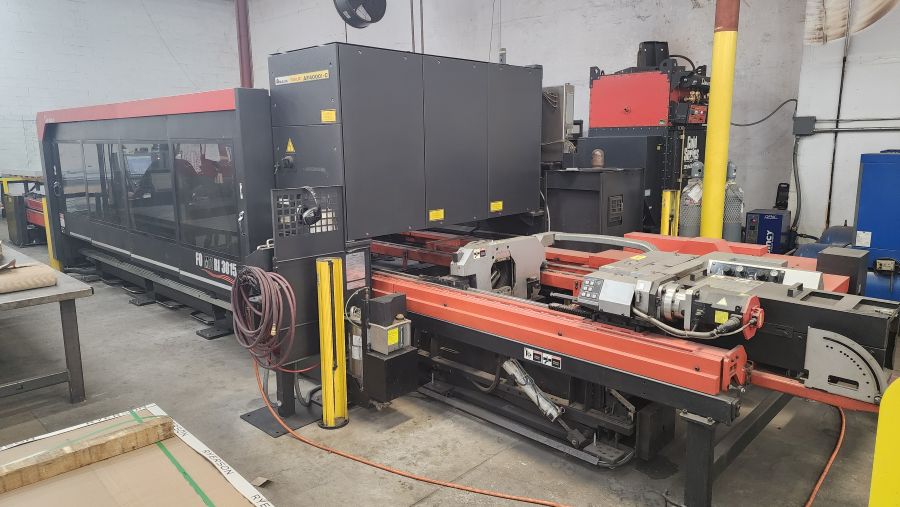

1161-Amada-FOM2-RI-3015-4kW-Front-Angle

Image 1 of 4

Amada FOM2 RI Laser

The FOM2 3015 NT RI is engineered to include an innovative Rotary Index with the power and speed to efficiently cut mid to thick materials. The Rotary Index is located on one of three shuttle pallets—making it extremely easy to switch from flat sheet cutting to tube or pipe cutting.

Motion package

Travel method: X & Y – axis beam move
Drive method: X Rack & Pinion, Y & Z Ball screw
Work area
               X= 121″
               Y= 61″
               Z= 7.87″
Maximum thickness
               7/8″ mild steel
               1/2″ stainless steel
               3/8″ aluminum
Maximum work weight: 2000 lbs
Rapid traverse
               X & Y: 3,150 inches per minute
               Simultaneous: 4455 inches per minute
               Z: 2,362 inches per minute
Repeatability: +/- 0.0002″
Z-axis sensor: HS-2007
CNC: AMNC PC-OS; windows embedded
Assist gas control: Automatic select
Oscillator: AF4000iB-4000 watt
Power requirements: 200/220V +/- 10% 50/60 Hz

CNC controller

Model: AMNC-PC
Display: LCD color graphics display
Control function
X,Y,Z-axis simultaneous and focus lens B-axis, adaptive optic and laser power control (CW, gated pulse, pierce routines, etc.)
Data input method: Touch screen, keyboard, ethernet, wireless, CD, USB, 3.5″ floppy disk
Minimum command unit: 0.0001″ (X,Y,Z)
Minimum travel unit: 0.0001″ (X,Y,Z)
Standard memory: 2 MB
Hard drive: 10 GB
Operating modes: Automatic and manual
Display modes: Program contents, position information, program check, settings, parameters, beam diameter compensation, assist gas status, self-diagnostics
Interlock displays: Cooling water status, gas pressure status, vacuum status, turbo blower malfunction, shutter status beam power, resonator discharge, door open, WACS

Rotary Index Specifications

Tube shapes: round, square, rectangular, angle and channel
Round tube: 0.75″-8.66″
Square tube: 0.75″-6″
Rectangle: 8.66″
Angle: 3.54″
Channel: 6″
Maximum weight: 441 lbs.
Maximum tube length: 236.2″
Rotation speed: 100 RPM
Dust collection: Automatic switching for tube length up to 236″Scratch prevention: controllable pneumatic chuck and aluminum roller

Equipped With

Dust Collector
Chiller
Standard Accessories
