4000-Watt Amada FO-4020NT Laser Cutting System
Manufactured in 2012
~28,760 hours as of November 2024
Request Quote
Amada FO-4020
Amada FO series is known for its reliability. This machine is equipped with 6′ x 12′ shuttle tables and a Fanuc 4000-Watt resonator.
Technical Specifications
1.1 Motion Package
Travel Method: Stationary table, X, Y and Z-axis movement for cutting head
Control Method: X, Y and Z simultaneous 3 axis control
Drive Motors: Fanuc AC servo motors
Maximum Sheet Size: 78″ (Y) x 156″ (X)
Maximum Axis Travel: 79″ (Y) x 160″ (X) x 7.87″ (Z)
Maximum Axis Positioning Speed: 3,150 inches per minute (80m/min) per axis (4,554 inches per minute 45 degree vector)
Maximum Speed Z-Axis: 2,362 inches per minute
Positioning Accuracy: 0.0004″/20″
Maximum Material Weight: 3,454 lbs.
Assist Gas: Automatic 4 ports with NC pressure Control
Machine Footprint: 483″ x 124″
Machine Weight: 31,060 lbs
Electrical Requirements: 208V, 3 Phase, 60Hz

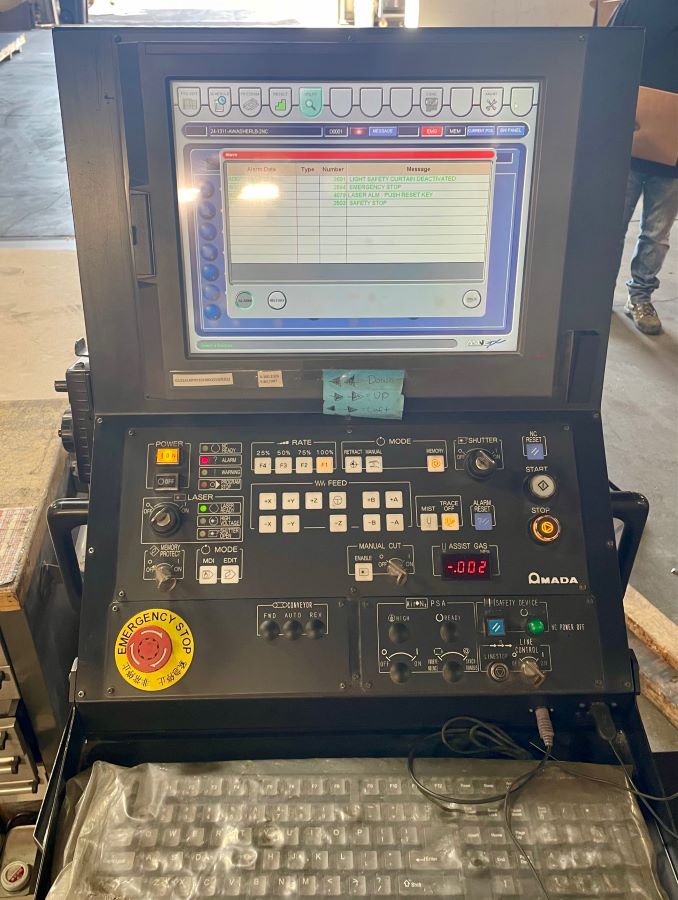

CNC Controller
Model AMNC-F
Display: LCD Color Graphics Display
Control Function: X, Y, Z-Axis Simultaneous and Focus Lens B-axis, Adaptive Optic and Laser Power control (CW, Gated Pulse, Pierce Routines etc.).
Data Input Method: Touch screen, Keyboard, Ethernet, Wireless, CD, USB, 3 1/2″ Floppy disk
Minimum Command Unit: 0.0001″ (X, Y, Z)
Minimum Travel Unit: 0.0001″ (X, Y, Z)
Standard Memory: 2 MB
Hard Drive: 10 GB
Operating Modes: Automatic and Manual
Display Modes: Program Contents, Position Information, Program Check, Settings, Parameters, Beam Diameter Compensation, Assist Gas Status, Self Diagnostics
Interlock Displays: Cooling Water Status, Gas Pressure Status, Vacuum Status, Turbo Blower Malfunction, Shutter Status, Beam Power, Resonator Discharge, Door Open, WACS.
Electrical requirements: See Motion Package
Laser Specifications
CW Power: 4000 Watts
Peak Pulse Power: 5000 Watts
