3600-Watt Trumpf TruLaser Tube 7000 Laser Cutting System
Manufactured in 2011

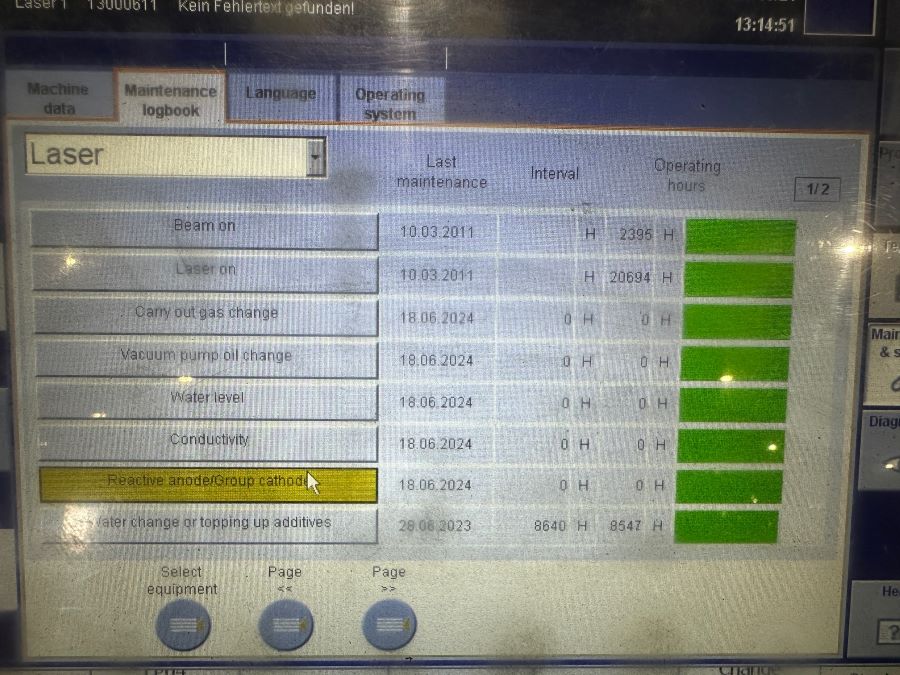

Hours as of June 2024 ~2,395 “Beam On” and 20,694 “Laser On”
Request Quote
TruLaser Tube 7000
The Trumpf Trulaser Tube 7000 is a flexible and high speed tube laser cutting system. This machine is equipped with a 3600-watt Trumpf resonator for efficient material processing.
Technical Data:
Round Tube
Max. Outer diameter: 204 mm; 8”
Rectangular profile
Max. side length and out circle dimeter: 180 mm/ 204 mm; 7”/8”
Max. Raw length for automatic loading
At Loadmaster tube 6,5 M: 6500 mm; 255”
At Loadmaster tube 9,2 M: 9200 mm; 362”
Finished Part length:
For unloading unit 3 M: 3000 mm; 118”
For unloading unit 3 M + 1.5m: 4500 mm; 177”
For unloading unit 4.5 M: 4500 mm; 177”
For unloading unit 4.5 M + 1.5 M: 6000 mm; 236”
For unloading unit 6.5 M: 6500 mm; 255”
For unloading unit 6.5 M + 1.5 M: 8000 mm; 314”
Workpiece weight
Max. path weight (standard/optional) 25 kg/m (37.5 kg/m); 16 lbs./foot (25 lbs./foot)
Max. Raw material weight with automatic loading
With loadmaster tube 6.5 M: 150 kg; 330 lbs.
With loadmaster tube (optional) 6.5 M: 225 kg.; 496 lbs.
With loadmaster tube 9.2 M: 150 kg; 330 lbs.
With loadmaster tube (optional) 9.2 M: 225 kg; 496 lbs.
Laser-specific data Truflow 3600
Max. laser output: 3600 W
Max. sheet thickness mild steel: 10 mm; ~3/8” (0.39”)
Max. sheet thickness stainless steel: 6 mm; ~1/4” (0.23”)
Max. sheet thickness aluminum: 5 mm; ~ 7 gauge (0.19”)
Consumption values Truflow 3600
Average power input in production: 26 kW
