3500-Watt Prima Platino 1530HS CO2 Laser

Manufactured in 2006

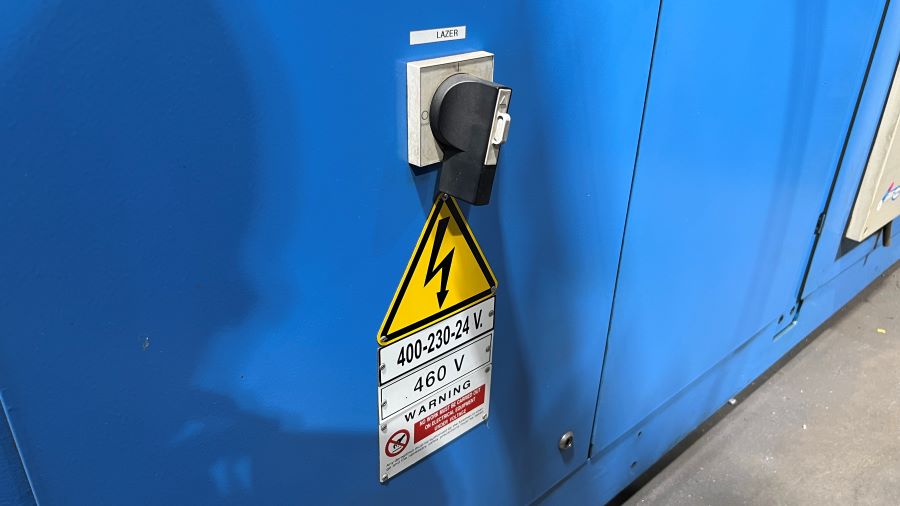

880-Prima-Platino-1530HS-Power-On

Image 5 of 5

Request Quote

Prima Platino

Prima Platino cuts a broad range of materials and thicknesses with speed and precision without the need for manual adjustment.  Thanks to its wide range of automation modules, Platino is the right solution for both small batches and large scale production.

Specifications

Model: Plantino 1530HS
Working Area:
X-axis: 3048 mm
Y-axis: 1524 mm
Z-axis: 150 mm
Maximum Speed:
Single Axis: 100 m/min
Trajectory: 140 m/min
Accuracy:
X, Y, Z positioning accuracy (Pa): 0.03 mm
Repeatability (Ps): 0.03 mm

Maximum Overall Dimensions:

Length: 10,600 mm
Width: 3,540 mm
Height: 2,500 mm
Weight: ~10,000 kg

Resonator Specifications

Model: CP 3500
Voltage: 400/460 VAC ±10%. 3 PH.
Frequency: 50/60Hz
Current: 50/44 AMPS ±10%

Equipped With:

Keller Dust Collector
Thermal Care Chiller
CP 3500 Resonator
