3500-Watt Mitsubishi 3015 LVP CO2 Laser

Manufactured in 2002

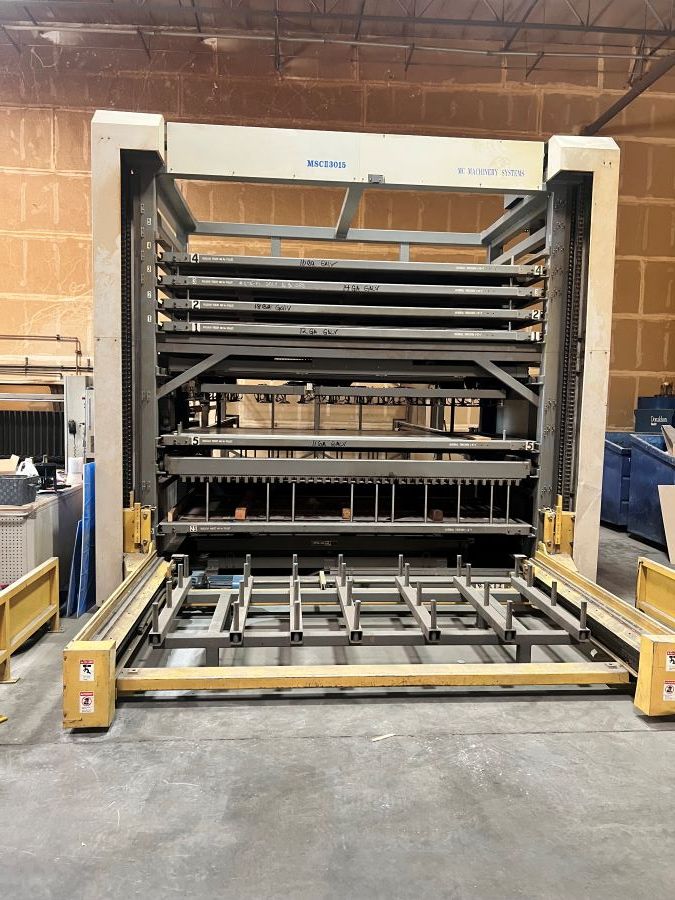

818-Mitsubishi-ML-3015-LVP-Tower

Image 3 of 7

Request Quote

LVP Series Laser

The Mitsubishi LVP series is the “workhorse” of Mitsubishi’s laser line known for reliability, while still a very productive laser cutting system. This machine has 5′ x10′ shuttle table laser and a 3500-watt resonator.

Specifications:

Motion system: Precision rack and pinion, direct drive
Travel drive method: X, Y, Z simultaneous 3 axis control
X-axis stroke: 122.05″
Y-axis stroke: 61.02″
Z-axis stroke: 3.53″
Maximum work piece size: 120.08″ x 60.04″
Maximum processing feed rate: 1180 IPM
Maximum workpiece weight: 2050 lbs.
Table pass height: 33.5″

Rapid travel speeds:

Single axis: 3345 IPM
Simultaneous: 4730 IPM
Minimum command input: 0.001mm/.0001″

Weight and Dimensions

Drive motor type: intelligent AC servo
Machine unit dimensions: 418.5″ L x 90.6″ H x 183″ W
Total system weight: 26,325 lbs.
Pallet change time: Approximately 25 seconds
Pallet changer weight: 4500 lbs.
Pallet changer drive mechanism: chain
Installation dimensions: 473.4″ x 227.7″
Floor space requirement: 750 square feet
Electrical requirements: 208 VAC +/- 5%, 3 phase, 60 Hz

Equipped with:

Chiller
5’ x 10’ shuttle tables
Load/unload system and storage tower
