3500-Watt Mitsubishi 3015 LVP CO2 Laser
Manufactured in 2002
Machine Number 818
Request Quote
LVP Series Laser
The Mitsubishi LVP series is the “workhorse” of Mitsubishi’s laser line known for reliability, while still a very productive laser cutting system. This machine has 5′ x10′ shuttle table laser and a 3500-watt resonator.
Specifications:
Motion system: Precision rack and pinion, direct drive
Travel drive method: X, Y, Z simultaneous 3 axis control
X-axis stroke: 122.05″
Y-axis stroke: 61.02″
Z-axis stroke: 3.53″
Maximum work piece size: 120.08″ x 60.04″
Maximum processing feed rate: 1180 IPM
Maximum workpiece weight: 2050 lbs.
Table pass height: 33.5″
Rapid travel speeds:
Single axis: 3345 IPM
Simultaneous: 4730 IPM
Minimum command input: 0.001mm/.0001″
Weight and Dimensions
Drive motor type: intelligent AC servo
Machine unit dimensions: 418.5″ L x 90.6″ H x 183″ W
Total system weight: 26,325 lbs.
Pallet change time: Approximately 25 seconds
Pallet changer weight: 4500 lbs.
Pallet changer drive mechanism: chain
Installation dimensions: 473.4″ x 227.7″
Floor space requirement: 750 square feet
Electrical requirements: 208 VAC +/- 5%, 3 phase, 60 Hz
Equipped with:

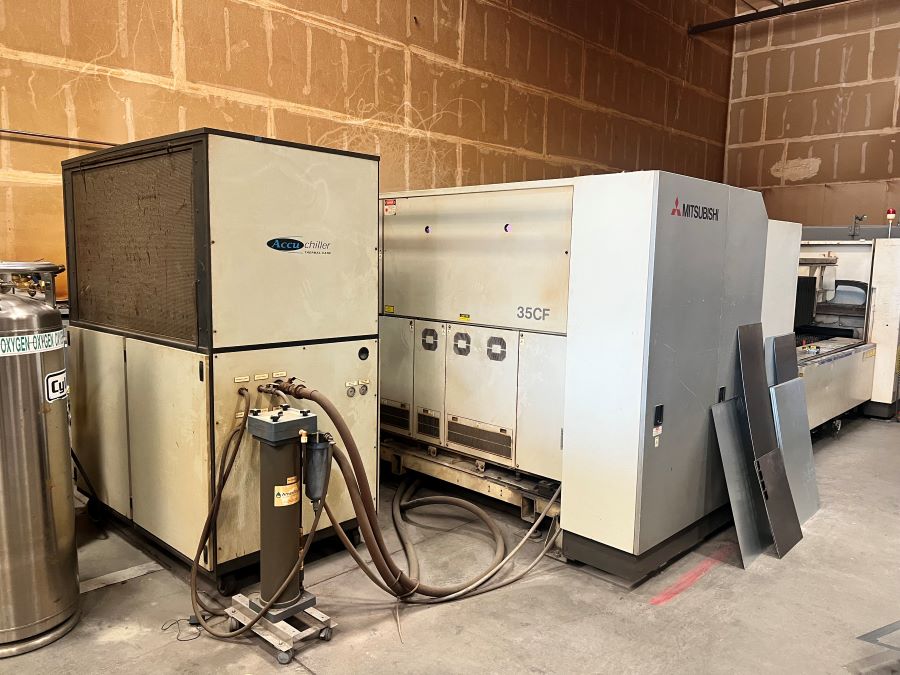

Chiller
5’ x 10’ shuttle tables
Load/unload system and storage tower
