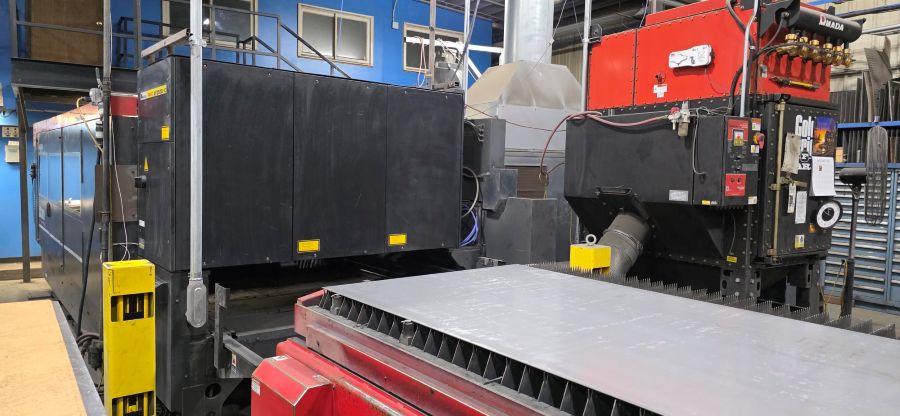

3500-Watt Amada LCG-3015 CO2 Laser Cutting System
Manufactured in 2016
Machine Number 1323
Request Quote
Amada CO2 Flying-Optics Style Laser
The Amada LCG-3015 is a flying-optics style CO2 laser built on a helical rack and pinion drive system for both the X & Y Axes. The helical rack and pinion drive system is capable of faster acceleration and rapid transverse speeds than traditional rack and pinion systems, without the extra cost and maintenance of a linear drive system. The LCG CO2 series is equipped with an Amada/Fanuc 3500i-C resonator, designed specifically for this system to achieve similar cut quality as more powerful CO2 systems.
Technical Data
Travel Method: Material remains stationary, X, Y and Z-axis movement
Drive Method: X and Y-axis helical rack and pinion, Z-axis ball screw
Axis Travel: 121″ x 61″ x 3.93″
Maximum Thickness:
Mild Steel: 0.75”
Stainless Steel: 0.375”
Aluminum: 0.312”
Maximum Work Weight: 2000 lbs.
Rapid Traverse:
X, Y: 4,724 inches per minute
Simultaneous: 6,693 inches per minute
Z: 4,724 inches per minute
Repeatability: ± 0.0002″
Z-Axis: High-speed capacitive sensing
CNC: AMNC-PC-OS, Windows embedded
Assist Gas Control: Automatic select
Resonator: AF3500i-C
Machine Weight: 28,000 lbs. (including shuttle table)
Power Requirements: 200/220V 10% 50/60Hz
Equipped with
Chiller
Dust Collector
