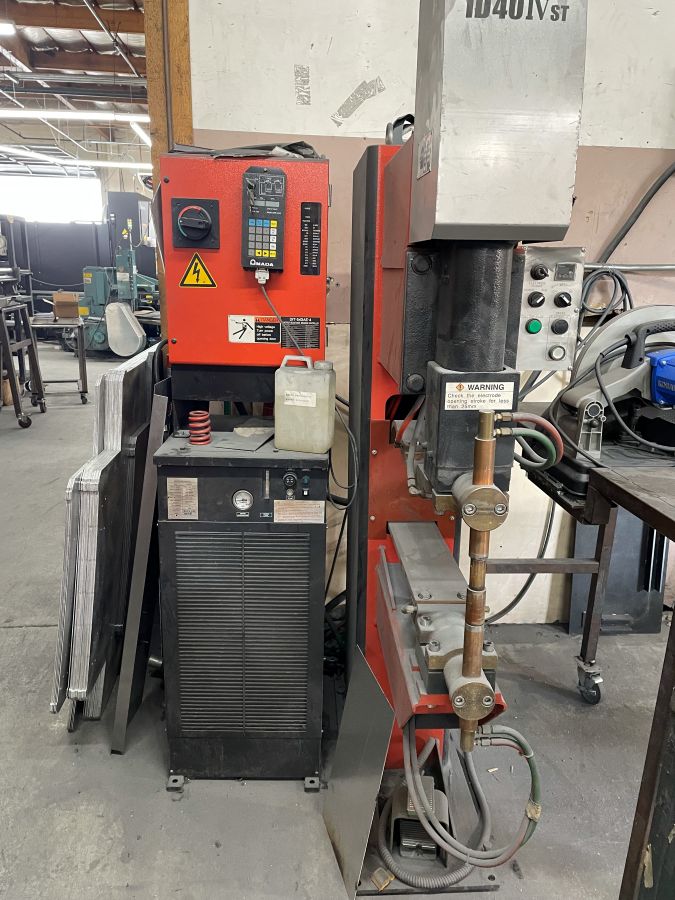

Amada ID40IV ST Inverter Controlled Spot Welder
Manufactured in 2014
Request Quote
Amada Spot Welders
The Amada Spot Welders provides Class A welding performance across a wide range of material by consistently delivering stable direct current output, resulting in superior finished products that require little or no post processing.
Specifications
Rating: 80 kVA
Welding Current: Maximum 30,000 amps
Electrode Force: Maximum 1,320 lbf
Duty Cycle: 10%
Electrodes: RWMA #5 (taper number)
Throat Depth: 32”
Horn Spacing: 1.9700 x 0.787” (max open x working open)
Electrode Holder: 1-1/4 x 8” (dia. barrel x long)
Holder Arm: 2.7” diameter
Required Air: 71 psi, 79.2 gal/min
ID401V ST Inverter
Power Supply: Three phase, 460V/100A
Voltage Output: 300 V
Current Output: 600 Aw
Power Demand: Maximum 180 kVA
Duty Cycle: 5%
Estimated Cooling: 1.320 gal/min
Required Cooling: 1.584 gal/min
