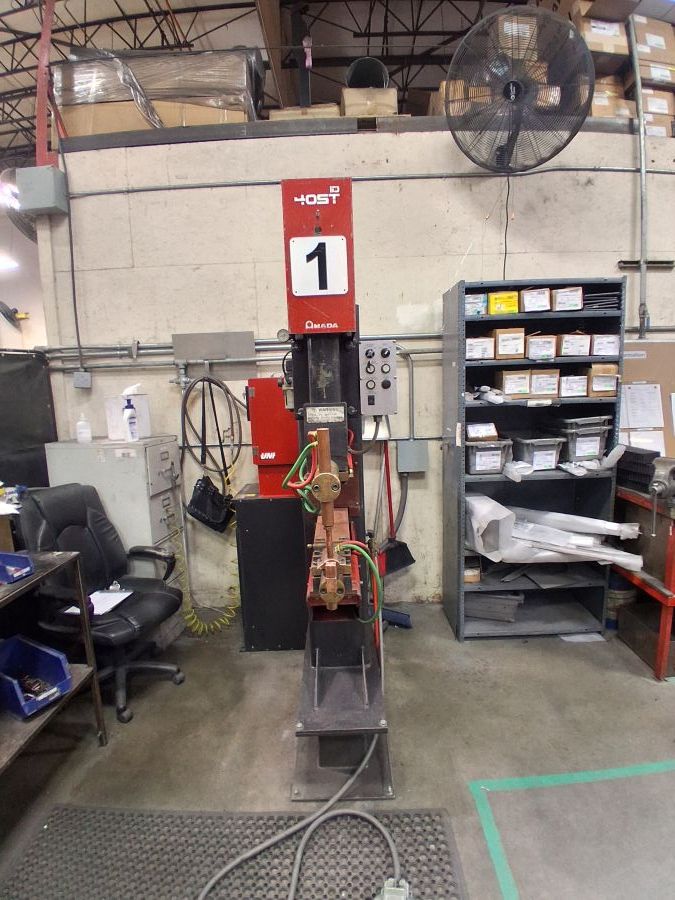

Amada ID-40-ST Inverter Spot Welder
Manufactured in 2002
Machine Number 1333
Request Quote
Amada Spot Welders
The Amada Spot Welders provides Class A welding performance across a wide range of material by consistently delivering stable direct current output, resulting in superior finished products that require little or no post processing.
Specifications
Nominal Power (at 50% Duty Cycle): 80 kVA
Maximum Welding Power: 257 kVA
Maximum Short Current: 30 kA
Maximum Electrode Force: 5900 N
Admissible Duty Cycle: 10%
Electrodes: RWMA #5 (taper number)
Throat Depth: 32″
Horn Spacing: 1.970″ x 0.787″ (maximum open x working open)
Electrode Holder: 1″ x 8″ (diameter barrel x long)
Holder Arm: 2.7″ (diameter)
Required Air: 71 psi 79.2 gallons/minute
Inverter Controlled Power Supply
Power Supply: 460 V/ Three Phase / 60 Hz
Voltage Output: 300 V
Current Output: 600 A
Power Demand Maximum Capacity: 180 kVA
Duty Cycle: 4.9%
Estimated Cooling Water Amount: 5 L/minute
Required Cooling Water: 1.584 gallons/minute
