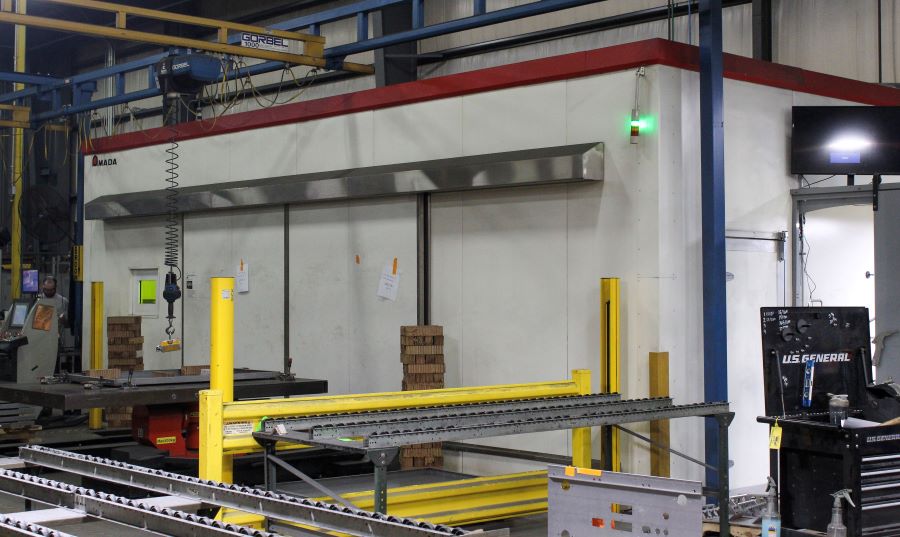

Amada FLW 3000 Ensis M5 Version
Fiber Laser Welding Cell
Manufactured in 2018 and Installed New in 2019
Request Quote
The FLW 3000 ENSIS
AMADA’s Fiber Laser Welding achieves a high-speed, high-quality weld not possible with a conventional laser welder. The FLW 3000 ENSIS is a complete welding solution equipped with a unique processing head, offline programming capabilities and many productivity enhancing features. The FLW 3000 ENSIS takes laser welding to a higher level of precision and productivity. AMADA’s Fiber laser technology provides Process Range Expansion by ensuring precise, high-speed results even when processing reflective materials such as brass and copper.
Machine Specifications:
Robot:
Model: MC2000 Yaskawa
Robot Controller: DX100
CNC Controller: AMBC/PC
Partition: Full Cover Partition
Laser Head: AMADA
Robot Carriage:
Standard Stroke: 59” (optional up to 236”)
Maximum Speed: 2,362”/min
Positioning Accuracy: +/- .0004”
Positioner Table:
Pass Line Height: 27.5”
Maximum Payload Capacity: 1102 lbs
Rotating Axis (Angel): +/- 720 degrees
Titling Axis (Angel): +/- 90 degrees
Oscillator and Chiller:
Model: ENSIS-3000
Rated Power: 3kW
Wavelength: 1.08
Oscillator Received Capacity: 12 kVA
Oscillator Mass: 882 lbs
Chiller Model: RKE5502B – VA – UP2
Cooling Capacity: 13kW
Chiller Weight: 750 lbs
Chiller Receiving Capacity: 40.7 kVA
Dimensions:
Machine Length: 336”
Machine Width: 240”
Machine Height: 138”
