3/16″ x 10′ Amada Mechanical Power Squaring Shear
Model: M-3045
Manufactured in 1999
Request Quote

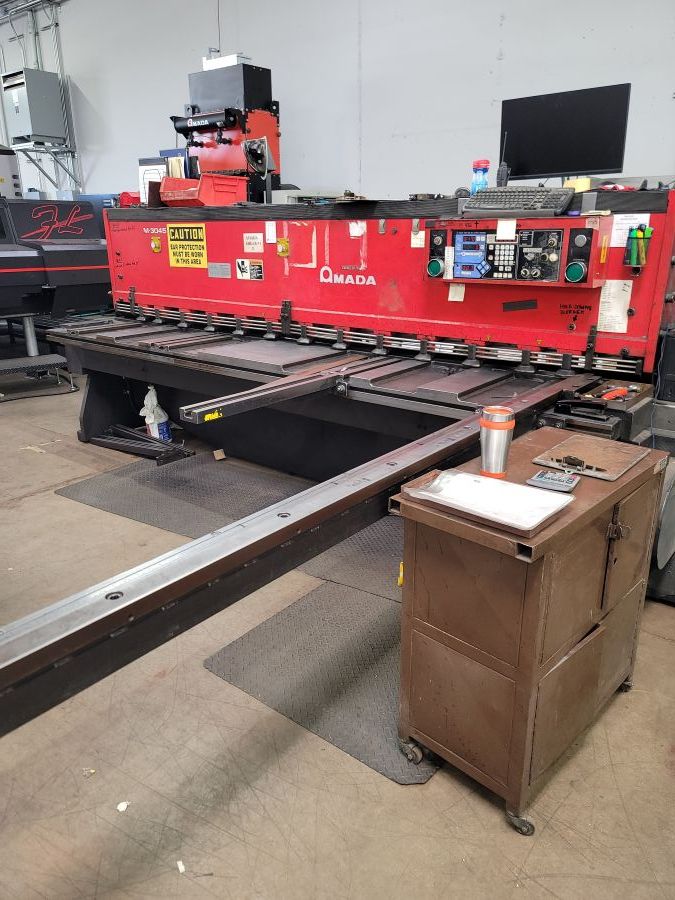

Amada Mechanical Shear
The Amada Mechanical Shear has been designed to be fast, accurate, versatile, and safe. All Amada mechanical shears have a rigid, rolled steel frame. All electrical and mechanical components are of the highest quality. This assures your of superior accuracy and performance. This particular shear has a 3/16″ capacity and a 10′ cutting length.
Specifications
Model: M-3045
Capacity (Mild Steel): 3/16”
Rake Angle: 1 Degree – 18′
Max Cutting Length: 10’
Blade Length: 133”
Type of Blade: Four-Edged Blade
Gap Depth: 11.81”
Number of Strokes: 60/minute
Main Motor: 7.5 kW
Backgauge Movement Range: 0.39” – 39.37”
Holddown Type: Hydraulic
Number of Holddowns: 13
Light Beam (No. of Bulbs): 40W x 4
Voltage: 460/230 3 Phase 60 Hz
Dimensions
Machine Dimensions: 172.83” L-R x 76.38” x 66.34”
Weight: 15,655 lbs.
Equipped With
Programmable Backgauge with 39.37” Range
Squaring Arm
Support Arm
