1/4″ x 10′ AccurlUSA Shear Genius-Cut

Model: MS8-8×3200

Manufactured in March 2020

Machine Number 1278

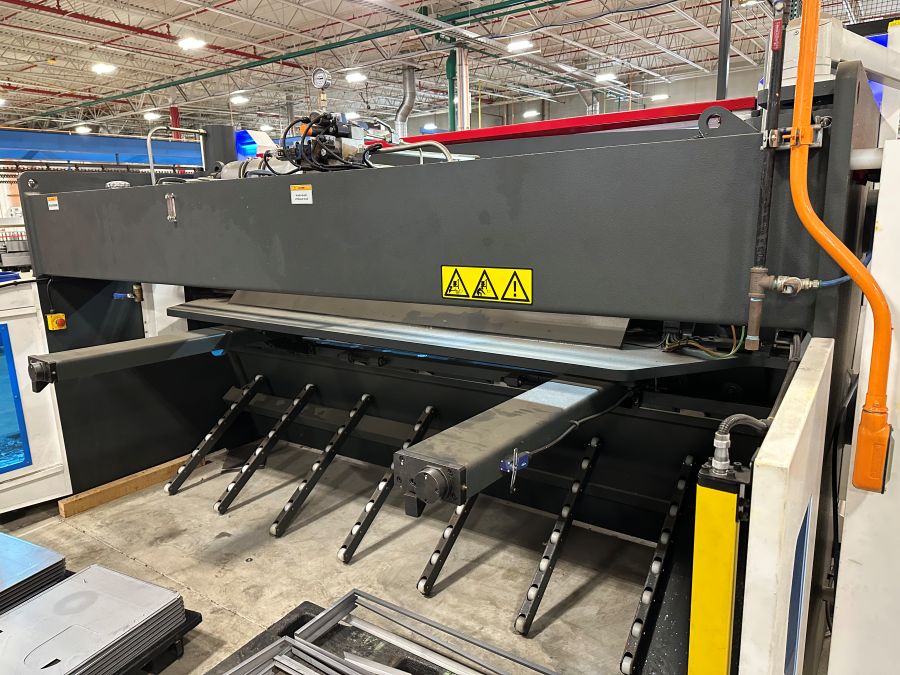

1278-Accurl-Shear-Back

Image 2 of 2

Accurl Genius Series

ACCURL®A-Genius series is the top of the line, incorporating all the latest technology to offer the highest level of functionality. With our hydraulic rake angle setting and user friendly control panel, you will be able to easily cut different material thicknesses. This series is well named as only the most intelligent machines could provide speed, precision, accuracy and repeatability all in one.

Specifications

Machine Name: Hydraulic CNC Guillotine
Model: MS8-8×3200
Cutting Capacity(M/S): 0.31”
Cutting Capacity(S/S): 0.21”
Cutting Length: 125.98”
Throat Depth: 3.94”
Rake Angle: 0.5-1.5°
Stroke Per Minute: 13
Blades Length: 129.92”
Weight: 16314 lbs

Electrical Values

Power of Main Motor: 10.2 HP
Total Connected Load: 14.3 HP
Operating Voltage: 220 VC
Frequency: 60 Hz
Control Voltage: 24 V DC
Nominal Cunent Fuse: 36.3 A

Capacity

Oil Tank Capacity: 58.1 Gal
Hydraulic Max Operating Pressure; 250 bar

Equipped With

ELGO P40 CNC Touch Control, Servo Backgauge
Automatic Blade Gap/Rake Angle Adjustment
