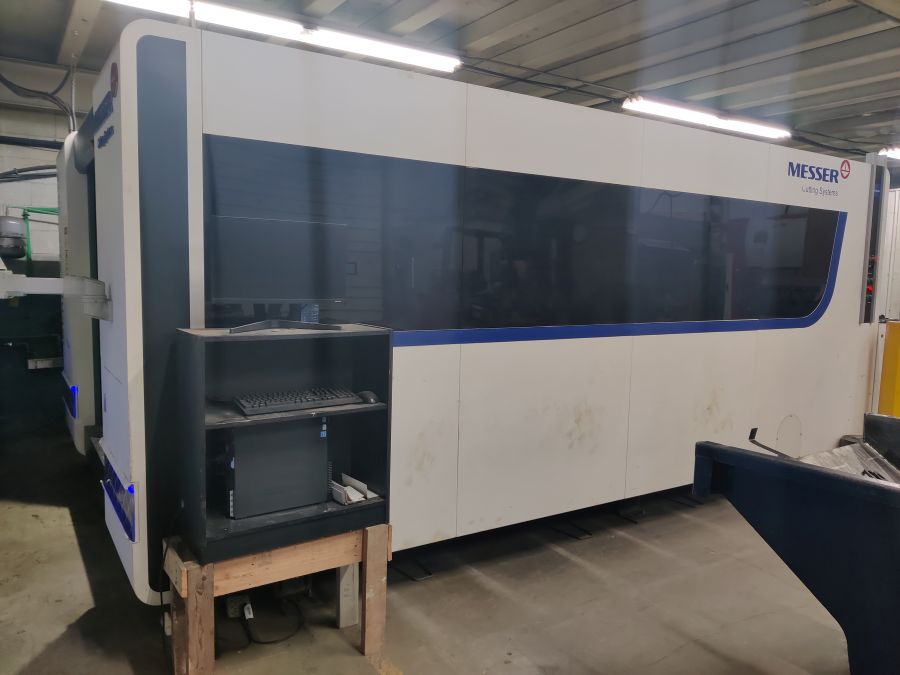

8000-Watt Messer FiberBlade V 3015 Fiber Laser Cutting System
Manufactured in 2019
Machine Number 1267
Request Quote
Messer FiberBlade V Series
The FiberBlade V Series uses high speed laser cutting technology to produce high quality cut parts. This series is user-friendly and easy to operate. This particular machine has an 8000-watt IPG Fiber resonator and 5′ x 10′ shuttle tables.
Machine Specifications
Model: Messer FiberBlade V 3015
Maximum Laser Output: 8000-Watts
Working Area:
X: 10’
Y: 5’
Z: 4.72’
X/Y Simultaneous: 6,653 IPM
X/Y Positioning Accuracy: 0.03 mm/m
Repeatability Accuracy: 0.01 mm/m
Max Load on Worktable: 1,653 lbs
Maximum Cutting Thickness:
Mild Steel: .984”
Stainless Steel: 1.18”
Aluminum Alloy: 1.18”
Equipped With
8000-Watt IPG YLS-8000 Fiber Laser Engine
CNC Control
5’ x 10’ Shuttle Table
Chiller
