8000-Watt Cincinnati CL-980 5×10 Fiber Laser
Manufactured in October 2019
Machine Number 1325
Request Quote
The Cincinnati 900 series
The Cincinnati 900 series are top of the line high-speed laser processing systems. Every 900 series machine is equipped with high-speed linear drives and intuitive CNC controls . This model is a CL-980 with 5′ x 10′ shuttle tables and has optional Cincinnati Automation and/or Gas Mixer.
Specifications
Model: CL-980 5×10
Oscillator: 8000-Watt Fiber
Maximum Sheet Size: 120” x 60”
Working Area X-Axis: 121”
Working Area Y-Axis: 61”
Working Area Z-Axis: 3.5”
Absolute Positioning (X & Y Axis): ± 0.001”
Repeatability (X & Y Axis): ± 0.001”
Maximum Rapid Traverse Speed Simultaneous: 12,020 inches per minute
Electrical Information
Voltage: 460
Phase: 3
Hertz: 60
Max Rating of Overcurrent Devices: 150 A
Full Load Current: 112.6 A
Largest Motor Rating: 18.8 A
Equipped With

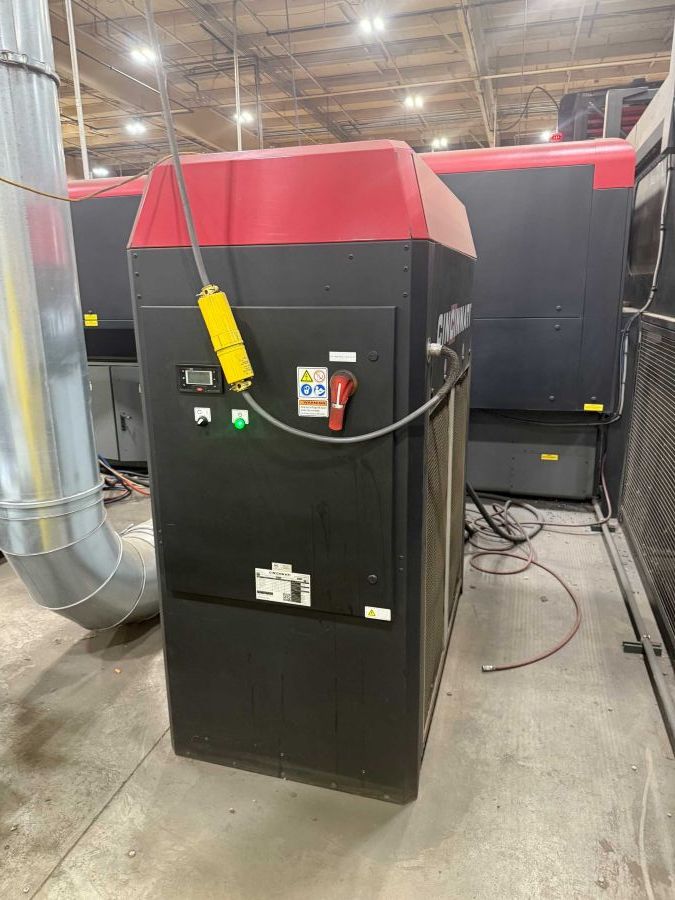

Cincinnati Chiller: Model WVI-10001-M
*Buyer’s Option Cincinnati Automation Tower
*Buyer’s Option MSS Gas Mixer
