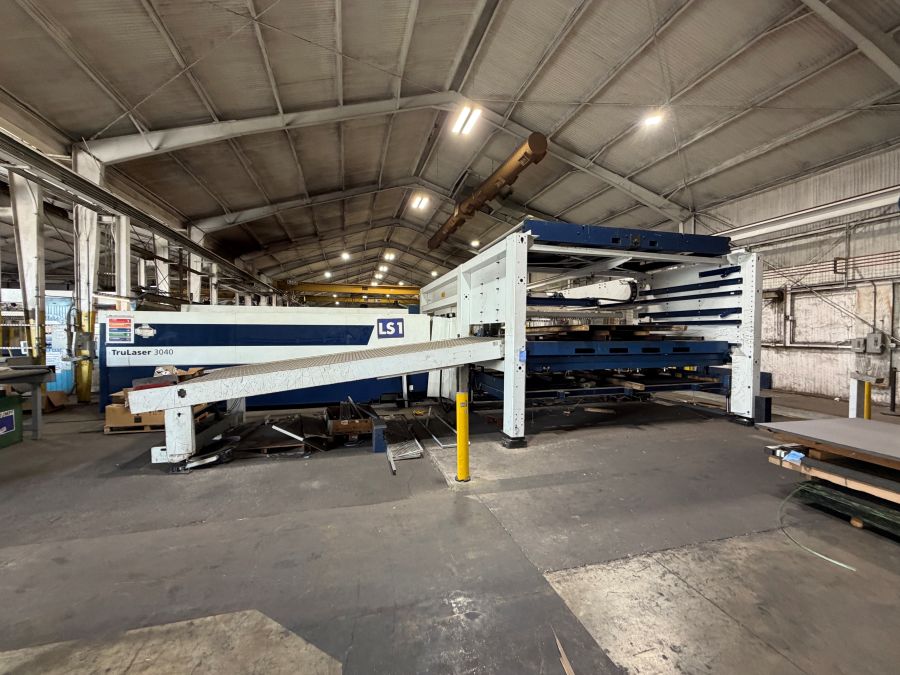

6000-Watt Trumpf TruLaser 3040 Fiber Laser
Equipped with Automation (not currently working)
Manufactured in 2018
Machine Number 1351
Request Quote
The Trumpf 3040 Fiber Laser
The Trumpf Trulaser 3040 is the 4 x 2 meter version of Trumpf’s popular 3000 series of laser cutting machines. As with all Trumpf fiber lasers, the 3040 Fiber is a highly productive cutting system. This machine is equipped with a TruDisk 6001 resonator (source).
Specifications
Working Range:
X axis: 4000 mm (157.5”)
Y axis: 2000 mm (78.7”)
Z axis: 115 mm (4.53”)
Workpiece Maximum Weight: 2000 kg (3748 lbs.)
Maximum Speeds
Simultaneous: 170 m/min (6693 in/min)
Accuracy
Position deviation Pa: 0.004″
Maximum Sheet Thickness
Mild Steel: 25 mm
Stainless Steel: 25 mm
Aluminum: 25 mm
Copper: 10 mm
Dimensions and Weight
Length: 11,200 mm (441”)
Width: 6373 mm (251”)
Height: 2200 mm (87”)
Weight: 14,300 kg (31,525 lbs)
Resonator
Laser Data: TruDisk 6001
Maximum Power: 6000 Watts
Equipped with
LiftMaster Compact
PartMaster
Trumpf CNC Control: Siemens Sinumerik
Chiller
Dust Collector
