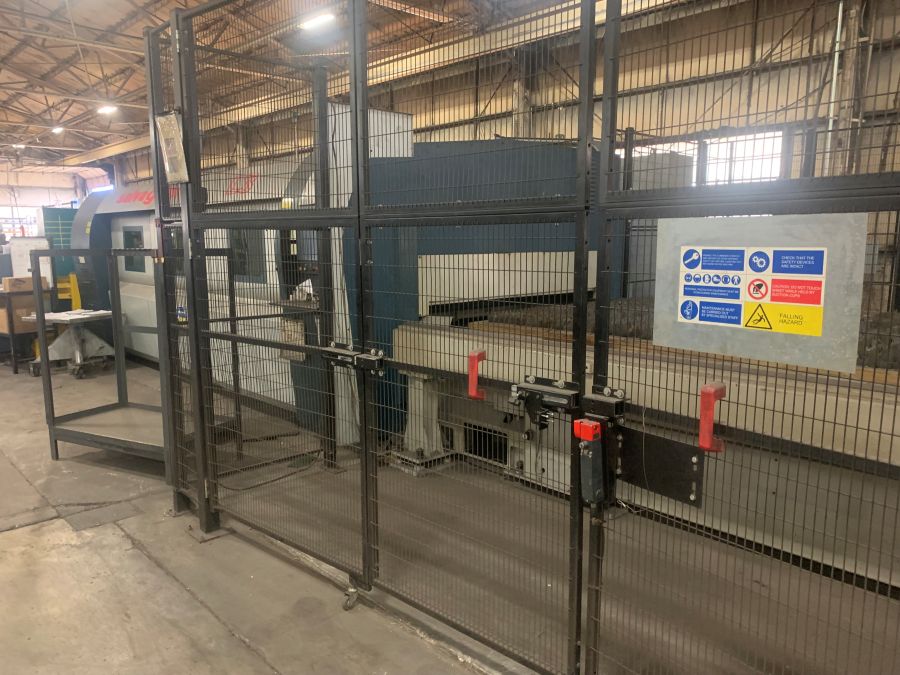

6000-Watt Salvagnini L3-4020 Fiber Laser
New in 2017
Machine Number 1210
Request Quote
Salvagnini Fiber Laser
In highly competitive markets that demand both low cost and high cut quality, the L3 is one solution that satisfies both needs, while bringing increased flexibility and productivity to the shop floor. With its high cutting speeds and reduced running costs, the L3 will produce a highly competitive cost per part in any application.
Specifications
Work Area Travel (maximum)
X-axis: 160”
Y-axis: 80”
Z-axis: 3.94”
Maximum Positioning Speed: 4724 inches/minute
Positioning Accuracy (measurement calculated according to VDI3441 on max. axis lengths)
Positioning Error Pa: 0.003”
Mean Standard Positioning Deviation Ps: 0.001”
Assist Gases: Nitrogen, Oxygen, Compressed Air
Laser power (maximum): 6000-Watts
Voltage: 460 V
Frequency: 60 Hz
Phases: 3
Nominal Current: 105 A
Current Rating: 10 kA
Equipped With
Dust Collector
Chiller
Load/Unload
3 Material Storage Towers
