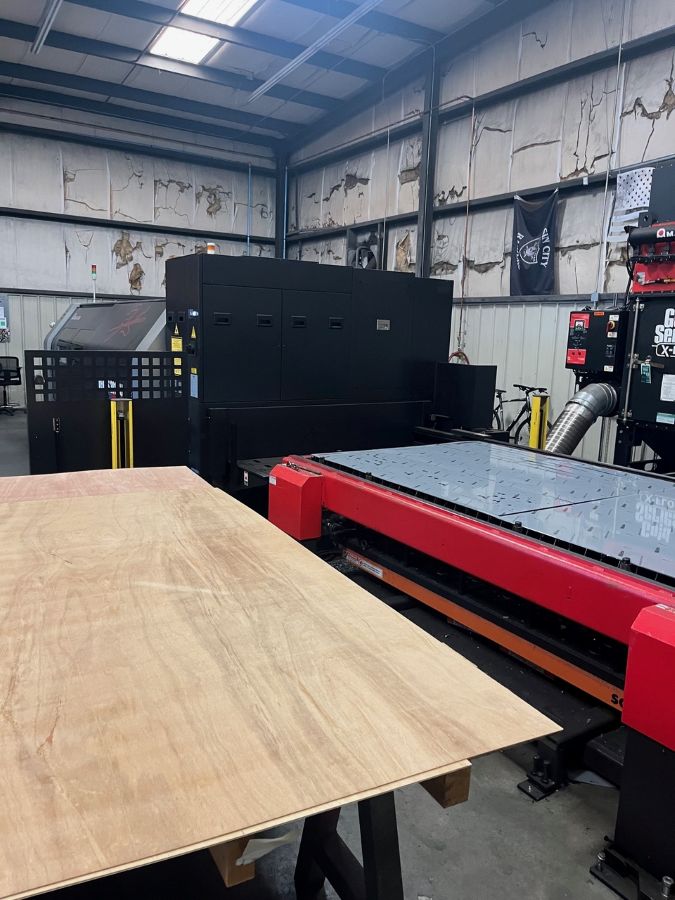

6000-Watt Amada Ventis-3015AJ Fiber Laser
Equipped with Amada AMNC 4ie CNC Control
Manufactured in 2022
Machine Number 1353
Request Quote
Amada Ventis 3015AJ Series
The Amada Ventis-3015AJ is the first fiber laser cutting machine to feature the locus beam control (LBC) technology. This technology improves both the processing quality and productivity. In combination with a newly developed, high brightness, single diode module 6kW fiber laser oscillator, the LBC technology sets a new standard for laser profiling.
Specifications
Maximum Sheet Size (X, Y): 120” x 60”
Maximum axis travel (X, Y, Z): 121” x 61” x 3.93”
Travel method: Stationary table X, Y and Z axis movement for cutting head
Control method: X, Y and Z simultaneous 3-Axis control
Drive motors: Fanuc AC Servo motors
Maximum positioning speed (X, Y)
Per axis: 4,724 inches per minute
45-degree vector: 6,693 inches per minute
Maximum speed Z-axis: 4,724 inches per minute
Repeatability: +/- 0.0002”
Maximum material weight: 2,000 lbs.
Assist gas: 3 ports with NC Pressure control
Electrical requirements: 208V, 3 Phase, 60 Hz
Control
Model: AMNC 4ie Control
Control function: X, Y, Z axis simultaneous and focus lens, B-axis and laser power control (CW, gated plus, pierce routines etc.)
Data storage: Compact flash drive
Fiber Laser Engine
Laser Power: 6000-Watts
Engine Style: LD excited Yb fiber
Power Stability: ±2%
Laser Wave Length: 1.08µm
Maximum Material Thickness
Mild Steel: 1”
Stainless Steel: 1”
Aluminum: 1”
Brass: 0.625”
Copper: 0.500”
Equipped with
AMNC 4ie control
Chiller
Dust Collector
