4000-Watt Trumpf TruLaser 3030 Fiber Laser
Equipped with LiftMaster Compact
Manufactured in 2016
Machine Number 1288
Request Quote

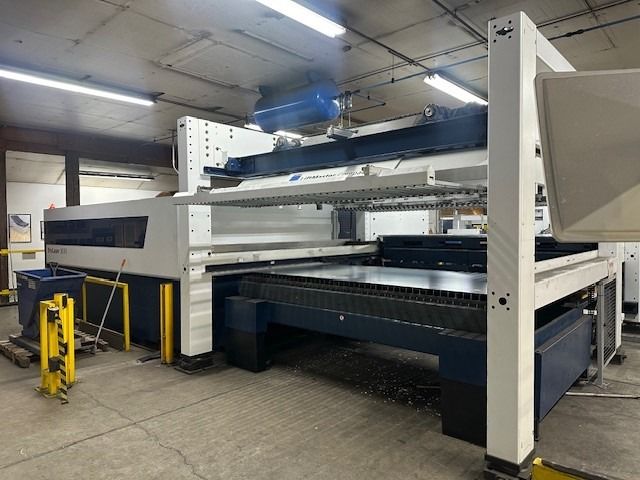

Trumpf Trulaser 3030
The Trumpf Trulaser 3030 fiber laser, is the fiber version of what is likely the worlds most popular and proven laser system, the Trumpf 3000 series. This machine is equipped with 5′ x 10′ shuttle tables and 4000 watt Trudisk solid state fiber resonator. Like most 3000 series machines, this system is prepped for automation.
Specifications
Working Range:
X Axis 3000 mm (~ 120 inches)
Y Axis 1500 mm (~ 60 inches)
Maximum Weight of Workpiece: 1100 kg (~2425 lbs.)
Maximum Speed Simultaneous: 170 m/min (~6693 inches per second)
Weight: 7650 Kg (~17,000 lbs.)
Resonator Specifications
Model: Trumpf TruDisk 4001
Maximum Power: 4000 watts
Maximum sheet thickness in Mild Steel: 25 mm (~ 1.0 inches)
Maximum sheet thickness in Stainless Steel: 20 mm (~ 0.787 inches)
Maximum sheet thickness in Aluminum: 20 mm (~ 0.787 inches)
Maximum sheet thickness in Copper: 8 mm (~ 0.314 inches)
Maximum sheet thickness in Brass: 8 mm (~ 0.314 inches)
Equipped with
Chiller
Dust Collector
LiftMaster Compact
Nozzle Changer
Brass & Copper Cutting Package
