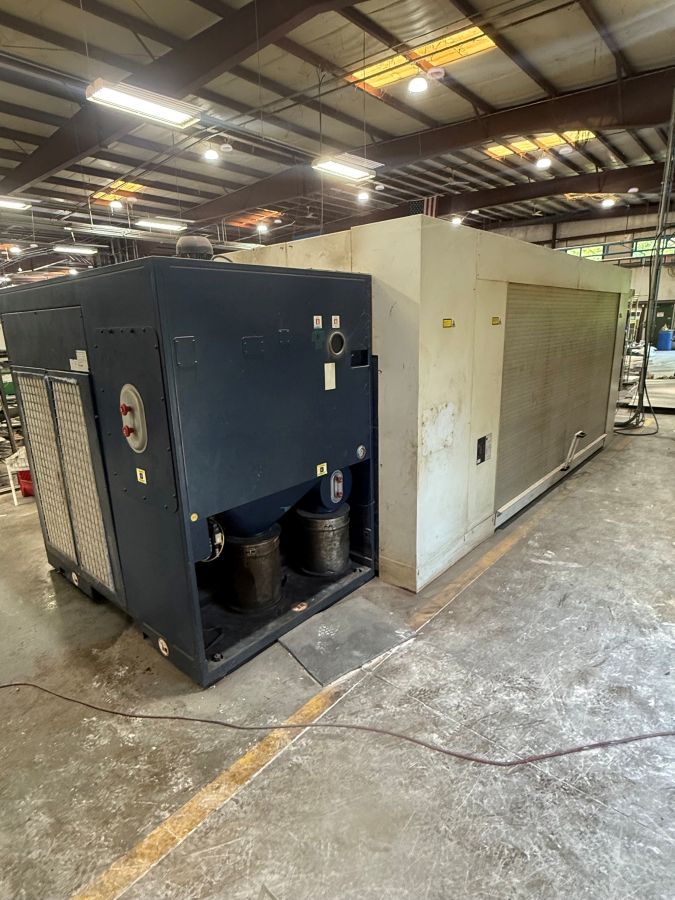

4000-Watt Trumpf TruLaser 2030 Fiber Laser Cutting System
Manufactured in October 2015
Machine Number 1307
Request Quote
Trumpf Trulaser 2030 Fiber
The Trumpf Trulaser 2030 Fiber laser is a compact full size fiber laser cutting system. As with all Trumpf fiber lasers, the 2030 Fiber is a highly productive cutting system with the Trudisk 4001 resonator (source) and 5′ x 10′ shuttle tables. However, the unique side-load shuttle table system and compact layout allow it to fit into spaces other full size fiber lasers will not.
Specifications
Working Range
X-axis: 3000 mm
Y-axis: 1500 mm
Maximum workpiece weight: 900 kg
Maximum Speed (Simultaneous): 140 m/min
Dimensions
Length: 8276 mm
Width: 6764 mm
Height: 2300 mm
TruDisk 4001 (TruLaser)
Maximum Laser Power: 4000-watt
Maximum Sheet Thickness, mild steel: 25 mm
Maximum Sheet Thickness, stainless steel: 20 mm
Maximum Sheet Thickness, aluminum: 20 mm
Maximum Sheet Thickness, copper: 8 mm
Maximum Sheet Thickness, brass: 8 mm
Electrical Information
Main Supply: 460 V / 60 Hz
Connected Load: 33.0 kVA
Control Voltage: 24VDC
Full Load Current: 42 A
AMP Rating of Largest Motor: 4.5A
Fuse Protection: 3 x 60A
Air Connection: 100 -175 PSI
Equipped With
Chiller
Dust Collector
