4000-Watt Messer MetalMaster Xcel 6015 Fiber Laser and Plasma Machine
Equipped with
* 6′ x 15′ shuttle tables
* Hypertherm HPR260XD Plasma System
Manufactured in 2015
Machine Number 1345
Request Quote

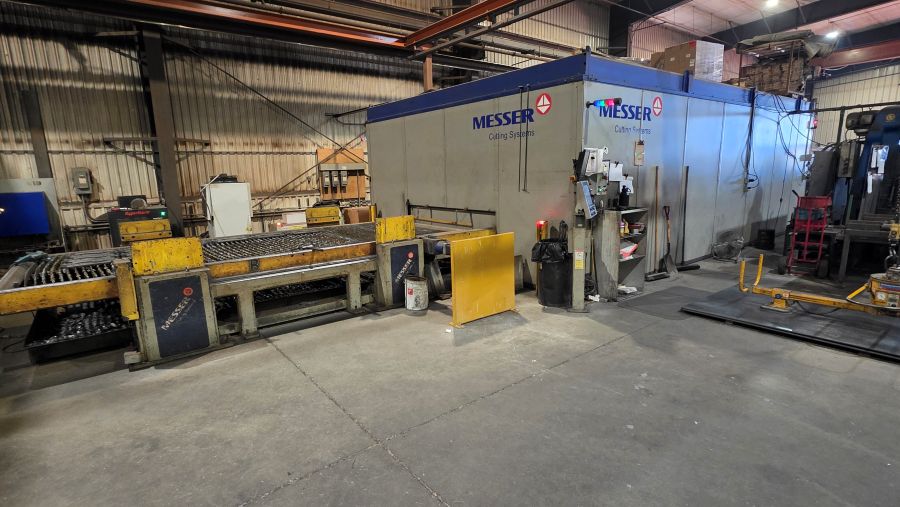

Messer MetalMaster Xcel
The Messer MetalMaster Xcel is a complete cutting package consisting of the cutting machine, downdraft exhaust table with a self-cleaning feature, a shuttle system for increased productivity, and is operated by a PC-based CNC control. This machine is the 6015 which has 6′ x 15′ shuttle tables, a 4000-Watt IPG laser, and a Hypertherm HPR260XD Plasma System.
Specifications
Model: MetalMaster Xcel
Cutting Width: 6’
Cutting Length: 15’
Travel Speeds: Up to 3000 IPM
Accuracy: ± 0.002” over 80” x 80” cutting area
Laser Specifications
Source: IPG Ytterbium Fiber Laser YLS-4000
Laser Output: 4000-Watts
Cut Material
Mild Steel: 1”
Stainless Steel: ¾”
Aluminum: ¾”
Cutting Head: HPSSL Plus
Plasma Specifications
Hypertherm HPR260XD Plasma System
Cut Material
Mild Steel: 1 ½”
Stainless Steel: 1”
Aluminum: 1”
Electrical Specifications
Volts: 480VAC
Phase: 3
Frequency: 60 HZ
Full Load Amps: 25.35
Max Motor/Load Amps: 38.0
Control
Messer Global Control Plus
15” LED Color Touch Screen
Equipped With
4000-Watt IPG YLS-4000 Fiber Laser Engine
Hypertherm Unit: HPR260XD
Messer Downflo Dust Collector
