4000-Watt Mazak Optiplex 3015 Fiber Laser Cutting System
Equipped with Automation Type II
Manufactured in 2013
Machine Number 1342
Request Quote
Mazak Optiplex 3015 Fiber
The Mazak Optiplex 3015 Fiber is Mazak’s high production fiber laser cutting system and all are equipped with shuttle tables, Mazak preview control and Mazak’s many “Intelligent Set Up” and “Intelligent Monitoring” systems. This Mazak Optiplex fiber laser is equipped with a 4000 watt Fiber laser, which is capable of cutting material thick and thin materials with a substantial speed advantage when compared to a CO2. Plus, the ability to cut some of the non-ferrous metals (brass, copper, etc.) not recommended for CO2 laser processing. Along with the greatly improved performance, the Mazak Optiplex Fiber laser is also significantly less expensive to operate since it uses less power and doesn’t require the consumables such as lens and turbo blowers required of CO2 lasers. Overall, this used Mazak Optiplex 3015 Fiber laser improves performance while lowering costs when compared to CO2 laser.
Specifications
Machine Structure: Flying optics
Maximum Workpiece Dimensions: 120” x 60” x 1”
Maximum Workpiece Weight: 2,050 lbs.
Machine Travels
X-axis: 122.0″
Y-axis: 62.20″
Z-axis: 3.9″
Work Table Height: 35.43″
Maximum Material Thickness
Mild Steel: 1.00″
Stainless Steel: 0.75″
Aluminum: 0.63″
Motion Drive System Design
X, Y Axis: Rack and Pinion drive
Z Axis: Ball screw drive
Number of Control Axes: 3
Rapid Travel Speed
X, Y Axis: 4,724 ipm
Positioning Accuracy:
X,Y Axis: 0.0002 inch/19.68 inch
Z Axis: 0.0004 inch/3.94 inch
Repeatable Accuracy
X, Y Axis: 0.0012″
Maximum Processing Feedrate
X, Y Axis: 2,362 IPM
Voltage 3 Phase: 230-460 V
Control

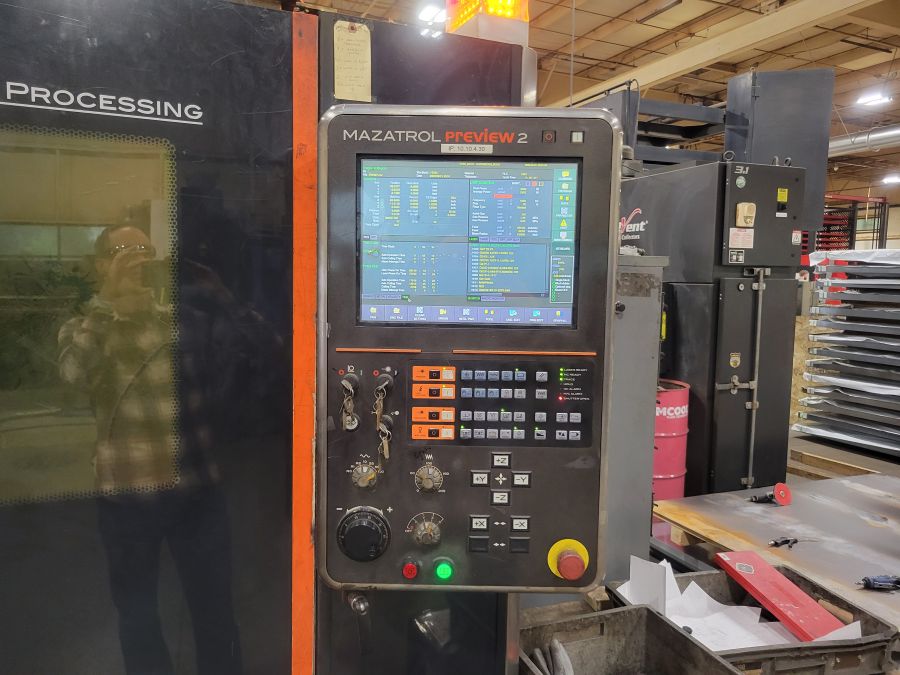

MAZATROL Preview 2
CPU: 64 bit
Display Screen: 15″ Color LCD
Memory Capacity: 16 GB (Program memory capacity: 1 GB)
Position Detection System: Encoder
Minimum Command Unit: 0.0001″
Program Input System: EIA/ISO
Equipped With
Automation Type II
Chiller
Dust Collector
