4000-Watt IPG Photonics Fiber Laser Cube
*New cutting head installed in Fall 2025
Manufactured in August 2021
Machine Number 1279
Request Quote

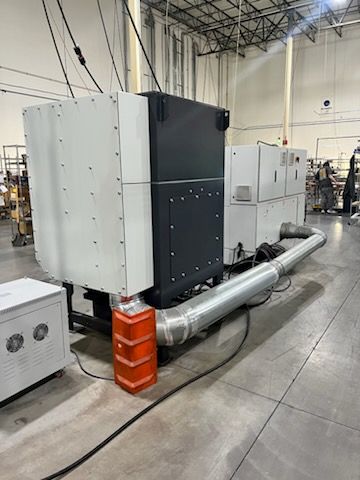

IPG Photonics Laser Cube
The LaserCube flatbed fiber laser cutting system is designed and optimized for fast and reliable precision cutting of small parts. The LaserCube flatbed laser cutting system is easy to use, quick and economical to install and can align with pre-punched or printed parts. Maximize productivity and lower the cost per part with a flexible laser cutting system in a small footprint.
Specifications
Laser Power: 4000-Watts
Working Range
X: 49.2”
Y: 49.2”
Z: 2.9”
Maximum Cutting Speed: 2362 in/min
Positioning Accuracy: ±25 µm (0.001”)
Positioning Repeatability: < 10 µm (0.0004”)
Materials: Stainless/Mild Steel, Aluminum, Brass, Copper, Laminated Foils
System Components: Linear Motors in X & Y, Ball Screw in Z
Frame: Granite Block
Electrical Information
Supply: 208-230VAC
Phase: 3 Phase+PE
Frequency: 50/60Hz
SCCR: 10kVA
Full Load Current: 24FLA
Maximum Breaker Size: 30A
Equipped With
CNC G-Code Compliant HMI Control
