4000-Watt Amada Ventis-3015AJ Fiber Laser
With Locus Beam Control Technology
Manufactured in 2019
Machine Number 1316
Request Quote
Amada Ventis 3015AJ Series
The Amada Ventis-3015AJ is the first fiber laser cutting machine to feature the locus beam control (LBC) technology. This technology improves both the processing quality and productivity. In combination with a newly developed, high brightness, single diode module 4kW fiber laser oscillator, the LBC technology sets a new standard for laser profiling.
Specifications
Maximum sheet size (X, Y): 120” x 60”
Maximum axis travel (X, Y, Z): 121” x 61” x 3.93”
Travel method: Stationary table X, Y and Z axis movement for cutting head
Control method: X, Y and Z simultaneous 3-Axis control
Drive motors: Fanuc AC Servo motors
Maximum positioning speed (X, Y)
Per axis: 4,724 inches per minute
45-degree vector: 6,693 inches per minute
Maximum speed Z-axis: 4,724 inches per minute
Repeatability: +/- 0.0002”
Maximum material weight: 2,000 lbs.
Maximum Material Thickness
Mild Steel: 25 mm
Stainless Steel: 20 mm
Aluminum: 15 mm
Assist gas: 3 ports with NC Pressure control
Electrical requirements: 200V, 3 Phase, 60 Hz
Control

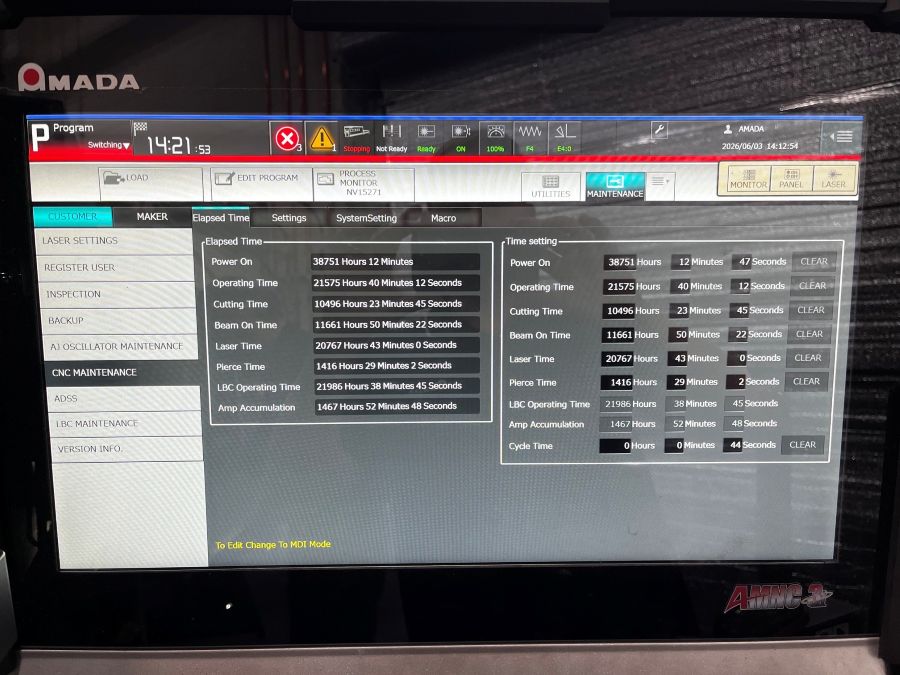

Model: AMNC 3i Control
Control function: X, Y, Z axis simultaneous and focus lens, B-axis and laser power control (CW, gated plus, pierce routines etc.)
Data storage: Compact flash drive
Equipped with
AMNC 3i control
Chiller
Dust Collector
