4000-Watt Amada LCG-3015AJ Fiber Laser Cutting System

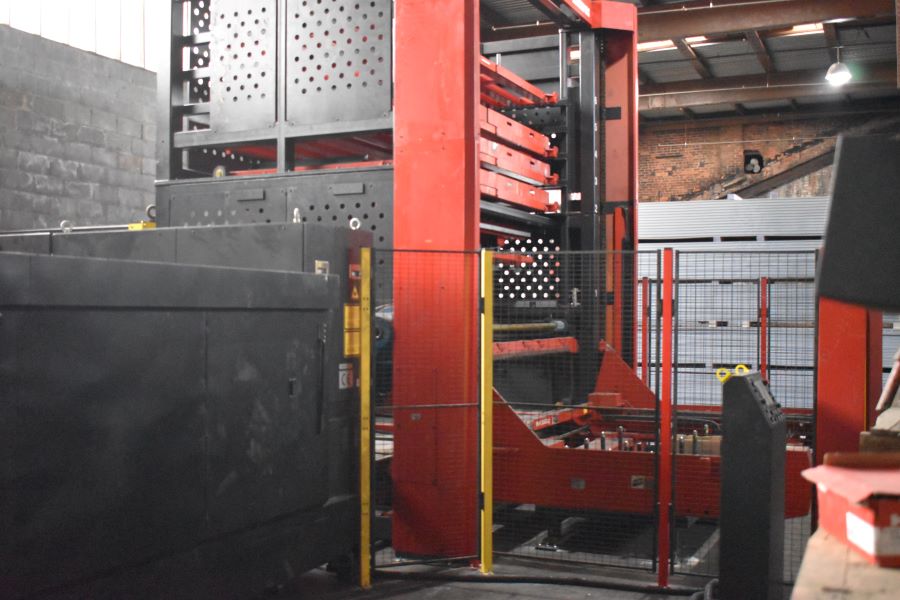

With Amada ASFH-3015G Load/Unload Tower
Manufactured in 2015
~ 16,000 Operating Hours and ~ 6,500 Cutting Hours as of June 2024
Request Quote
Amada LCG-3015
Amada was the first laser manufacturer to engineer and build their own fiber laser source specifically for sheet metal processing. Compared to the previous generation, Amada’s current fiber engine uses 60% fewer laser diodes and 75% fewer modules to generate the same amount of power. The reduction in diodes and modules allow the fiber engine to achieve an industry-leading wall plug efficiency and a maximum light conversion efficiency of 75%. When compared to a CO2 laser system, an Amada fiber laser is over 3 times more efficient and uses 1/3rd of the electricity. Amada’s simplified fiber engine design does not require laser gas, mirrors, or any other items typically associated with CO2 beam generation. A single fiber optic delivery cable to the laser cutting head eliminates the need for additional external mirrors. With the dramatic increase in productivity of the LCG AJ, material handling is more important than ever to realize full machine potential. This machine is equipped with the Amada ASFH-3015G Load/Unload Automation.
Specifications
Model: LCG 3015 AJ
Maximum sheet size: 120” x 60”
Maximum axis travel (X,Y,Z): 121” x 61” x 3.93”
Travel Method: Stationary table X,Y and Z-axis movement for cutting head
Control method: X,Y and Z (Simultaneous 3-axis control)
Drive motors: Fanuc AC servo motors
Maximum Axis positioning speed (X,Y): 4,724” per minute per axis (6.693”/min 45 degree vector
Maximum Z-axis speed: 4,724”per minute
Repeatability: +/- 0.0002”
Maximum material weight: 2000 lbs.
Power supply:200/60 V/Hz (+/- 10 percent), 3-phase
Machine control
Model: AMNC 3i Control
Display: Touchscreen color LCD
Control function: X,Y, Z-axis simultaneous and focus lens, B-axis, and laser power control (CW gated pulse, pierce routines, etc.)
Fiber laser resonator
Wattage: 4KW
CW output power: 4KW
Resonator style: LD excited Yb fiber
Laser wavelength: 1.08 microns
Automation Specifications
Model: ASFH3015G, 5’ x 10’ sheet size, 5-Shelf material storage tower (15’6” Height)
Cutting pallets: 2 (works like a shuttle table)
Raw material pallets: 2
Parts pallets: 3
User defined pallets: 5
Equipped with
Dust collector
Chiller
