3000-Watt Salvagnini L1Xe-30 Fiber Laser

Manufactured in 2009

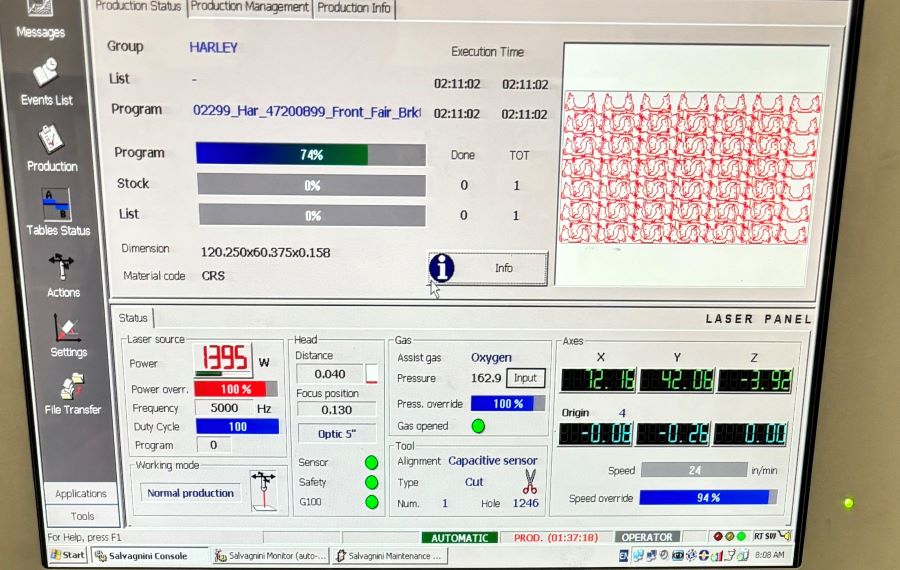

939-Salvagnini-L1Xe-Computer-Screen

Image 7 of 7

Salvagnini Fiber Laser

L1Xe fiber lasers are economical to own, energy efficient, ecologically responsible, and built for speed.  This model is simple and efficient which is why it’s called “X”.
The L1Xe can process a wide range of materials and thicknesses, always with the maximum quality.  It does this using nitrogen or oxygen taken from two dedicated supply lines as the assist gas, or compressed air from a third separate line, taking care to assure complete safety at all times.

Machine Specifications

Model: L1Xe-30

Working Area:
Workable X Y: 120” x 60”
Z-axis stroke: 6”

Technical specifications
Maximum positioning speed: 4700 ipm

Positioning accuracy
Positioning error: pa 0.003”
Mean standard positioning deviation Ps: 0.001”
Assist gases: nitrogen, oxygen, compressed air
Maximum pressure at nozzle: 300 psi

Laser source
Type of source: Fiber
Maximum power (watts): 3000
