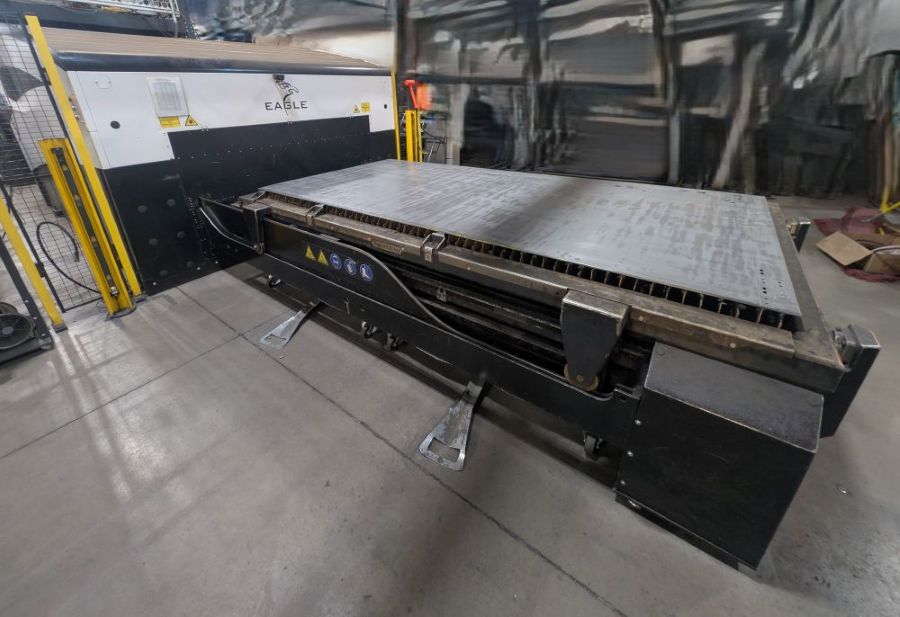

20,000-Watt Eagle iNspire 1530 F20.0 Fiber Laser
With IPG YLS-20000 Power Source
Manufactured in 2020
Machine Number 1275
Request Quote
Eagle iNspire Laser Series
The iNspire laser cutting machines are technically advanced, precise, dynamic and efficient. Designed for demanding mass production such as cutting out components for electric motors and complex shapes. Thanks to the unique design of the machine and the carefully selected components, dynamic linear motors on all axes, modern composite material body, and carbon fiber traverse, iNspire provides high working efficiency. This laser is equipped with an IPG YLS-20000 power source.
Machine Specifications
Model: Eagle iNspire 1530 F20.0
Working Range:
X-axis: 3060 mm
Y-axis: 1540 mm
Z-axis: 100 mm
Maximum Sheet Weight: 1000 kg
Machine Dimensions
Length: 10000 mm
Width: 3080 mm
Height: 3060 mm
Weight: 18 t
Maximum Speeds
Maximum Cutting Speed: 150 m/min
Parallel to the X, Y axes: 240 m/min
Simultaneously: 340 m/min
Axis Parameters
Repetitiveness: ±0.03 mm
Cutting Precision: ±0.05 mm
Max. Acceleration: ±60 m/s2
Maximum Cutting Thickness
Mild Steel: 60 mm
Stainless Steel: 60 mm
Aluminum: 50 mm
Brass: 30 mm
Copper: 25 mm
Equipped With
CNC Control
Riedel Chiller
Donaldson Dust Collector
IPG YLS-20000 Power Source
Gas Mix Lines
