2000-Watt Farley LaserLab Tube Laser

Model: LT6515

Manufactured in 2017

Machine Number 1256

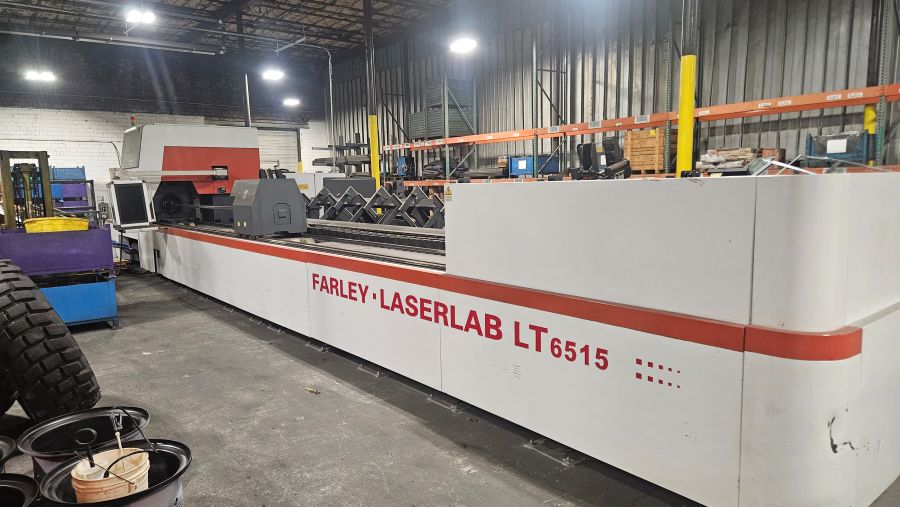

1256-Farley-LaserLab-LT6515-Laser-2kW-Angle

Image 1 of 7

Specifications

Working Range:
   X axis: 6500 mm
   Y axis: 200 mm
   Z axis: 170 mm
Maximum Running Speeds:
   X axis: 90 m/Min
   Y axis: 30 m/Min
   Z axis: 30 m/Min
Position Accuracy:
   X axis: ± 0.05 mm
   Y axis: ± 0.05 mm
   Z axis: ± 0.05 mm
Rotary Speed: 540°/sec
Round Tube Diameter: 7/8” to 7”
Square Tube: 7/8” x 7/8” to 4 ¾” x 4 ¾”
Bar Load Length: 3.5 m to 6.5 m (137” to 256”)
Bar Unload Max Length: 1.5 m (39”) upgradable to 6.5 m
Material Types: Stainless Steel, Mild Steel, and Aluminum
Footprint: 48’ x 19’

Control

CNC Control: Siemens

Resonator

Model: IPG YLS-2000 Fiber Resonator
Maximum Power: 2000 Watts

Equipped with

Chiller
Dust Collector
