12000-Watt Trumpf TruLaser 3060 Fiber Laser
Equipped with 20′ x 8′ Shuttle Tables and Trumpf TruDisk 12001 Resonator
Manufactured in May 2023
Machine Number 1239
Request Quote
Trumpf TruLaser 3060
The Trumpf Trulaser 3060 fiber is the large table fiber laser version of what is likely the worlds most popular and proven laser system, the Trumpf 3000 series. This machine’s huge 8′ x 20′ shuttle tables and 12000 watt TruDisk solid state fiber resonator are designed to handle the biggest jobs with the Trumpf 3000 series legendary reliability and productivity.
Machine Specifications
Working Range: 6000 mm to 2500 mm (~20’ x 8’)
Maximum Simultaneous Axis Speed: 170 m/min
Machine Weight: 18050 kg (39,793 lbs)
Machine Dimensions (approximate): 15450 mm (L) x 6878 mm (W) x 2200 mm (H)
Main Supply: 460 V / 60 Hz
Connected Load: 74.0 kVA
Control Voltage: 24 VDC
Full Load Current: 103 A
AMP Rating of Largest Motor: 10.6 A
Laser Specifications
Maximum Laser Power: 12000 Watts
Maximum Material Thickness with TruDisk 12001:
Mild steel: 30 mm
Stainless steel: 40 mm
Aluminum: 30 mm
Copper: 12.7 mm
Brass: 12.7 mm

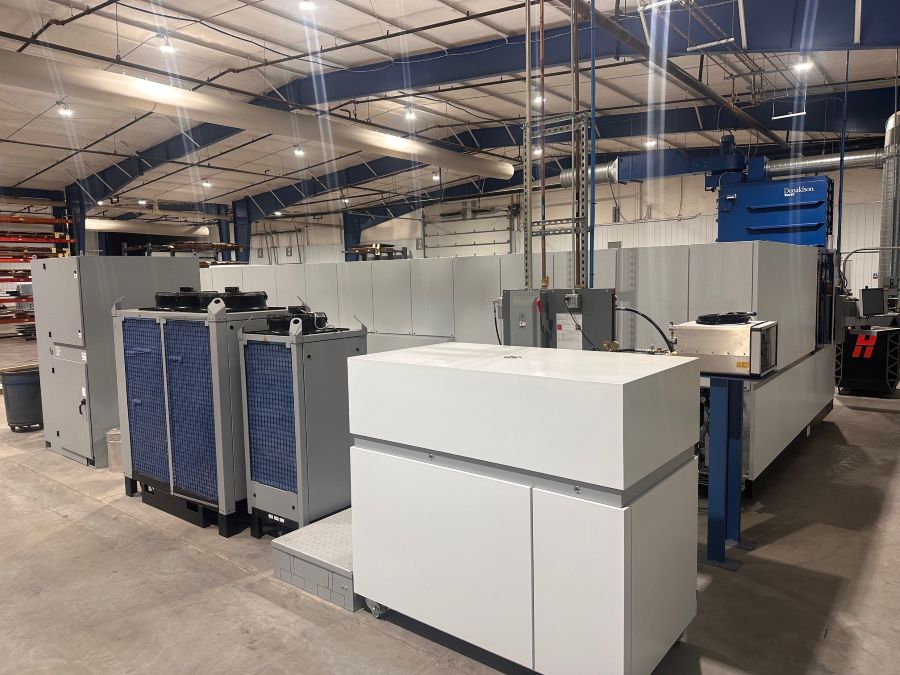

Equipped With
Dust Collector
Chiller
